YOELEO XC19 29" MTB Hardtail Booster Carbon Frame
Regular price €957,00
Unit price per
Disc Brake: Post mount
Color:

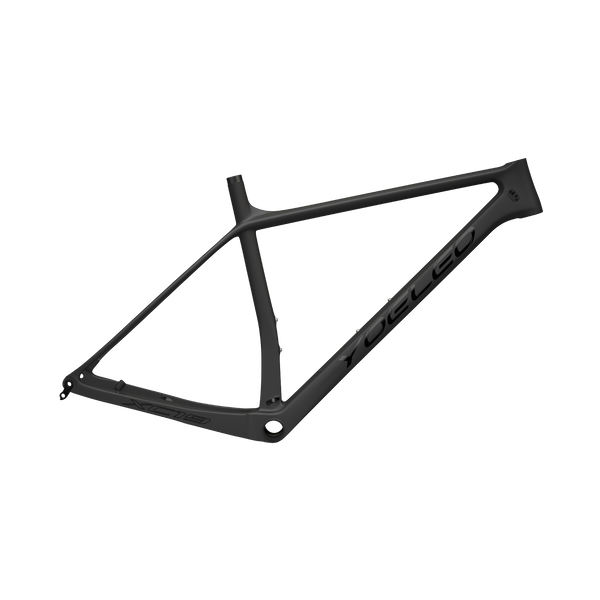

Stealth Black

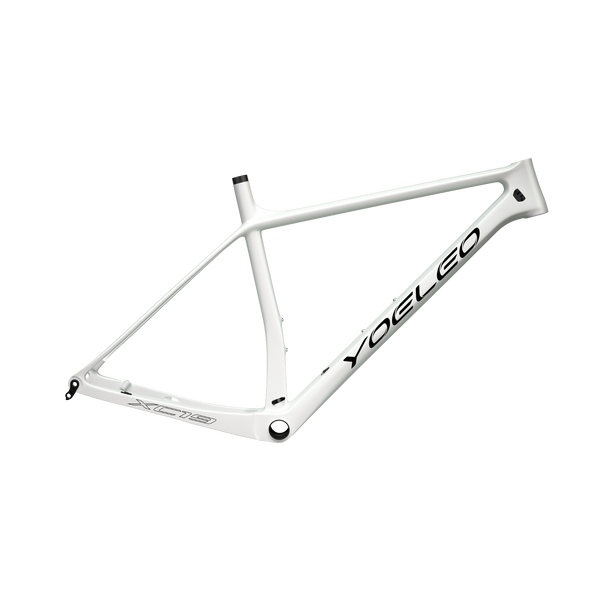

Pearly White

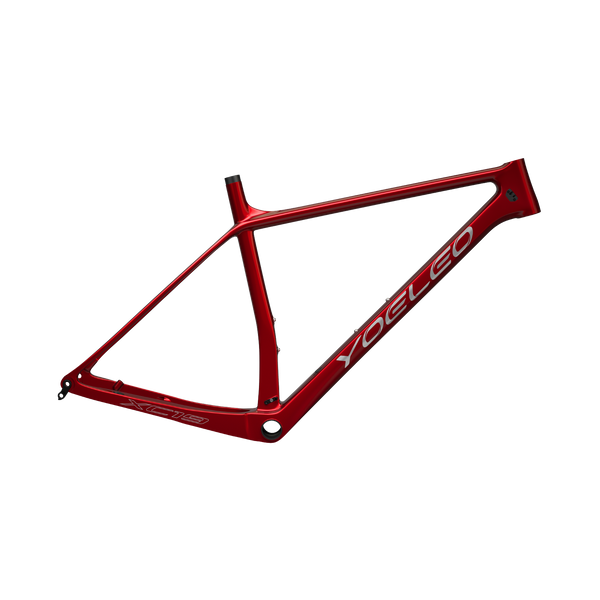

Super Red

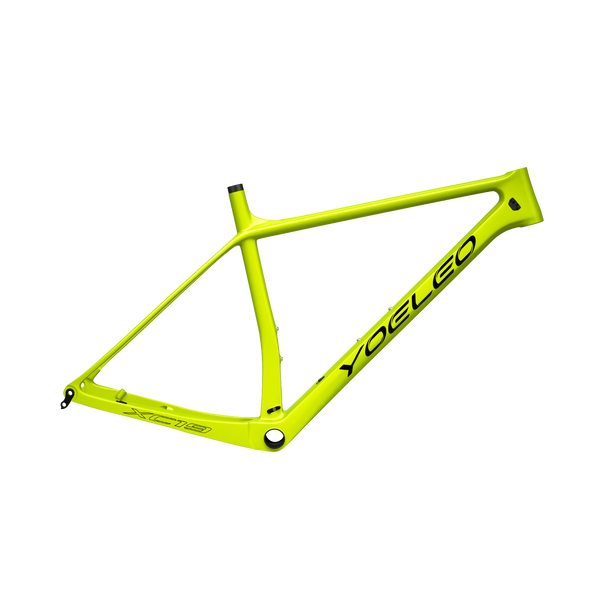

Neon Yellow

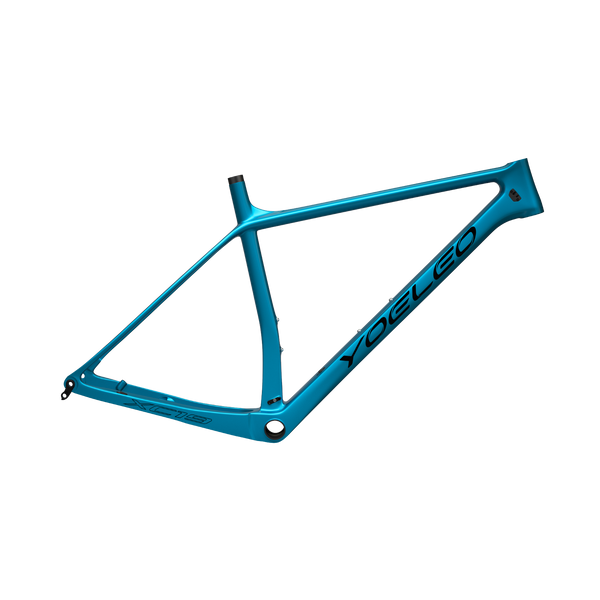

YOELEO Blue

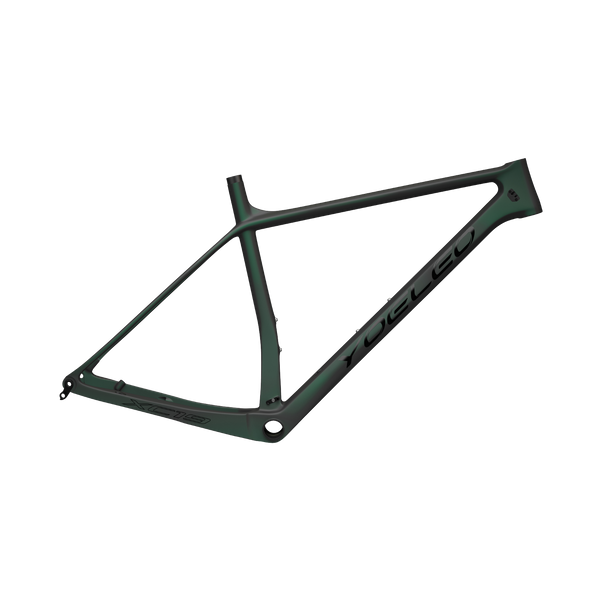

Dark Green Chameleon
Dropout: 148x12TA
Max Tire Clearance: 29"x2.35''
Size: 15"/17"/19"/20.5"
Bottom Bracket: Press Fit BB92
Seat Post: 31.6mm
Weight: 1150g/17"
Warranty: 3 Years
Geometry:
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | |
| SEATPOST INSERT LENGTH | REACH | TOP TUBE LENGTH, HORIZONTAL | STACK | WHEELBASE | CHAINSTAY LENGTH | FRONT CENTER | BB DROP | BB HEIGHT | SEAT TUBE ANGLE | HEAD TUBE ANGLE | SEAT TUBE LENGTH | HEAD TUBE LENGTH | BIKE STANDOVER HEIGHT(29“*2.35”) | FORK RAKE/OFFSET | FORK LENGTH, FULL | TRAIL | |
| 15“ | 140mm | 430.7mm | 580mm | 600.4mm | 1127.8mm | 445mm | 689.6mm | 60mm | 315mm | 72.5° | 69.5° | 390mm | 105mm | 730mm | 51mm | 490mm | 85.4mm |
| 17” | 190mm | 450.7mm | 600mm | 600.4mm | 1147.8mm | 445mm | 709.5mm | 60mm | 315mm | 72.5° | 69.5° | 440mm | 105mm | 762.4mm | 51mm | 490mm | 85.4mm |
| 19“ | 200mm | 467.7mm | 620mm | 609.8mm | 1168.2mm | 445mm | 729.9mm | 60mm | 315mm | 72.5° | 69.5° | 480mm | 115mm | 797.7mm | 51mm | 490mm | 85.4mm |
| 20.5“ | 200mm | 484.8mm | 640mm | 619.1mm | 1188.8mm | 445mm | 750.4mm | 60mm | 315mm | 72.5° | 69.5° | 530mm | 125mm | 812.2mm | 51mm | 490mm | 85.4mm |
